Guitar pedal power supply and polarity

[Will_m]

I'm trying to understand the polarity requirements for guitar pedals and specifically at present the Gamechanger Audio light pedal. Their own website states:

Gamechanger Audio LIGHT Pedal requires a standard pedal power supply – Barrel plug – 2.1 x 5.5 mm with a center-negative polarity with 9V DC and at least 500 mA.

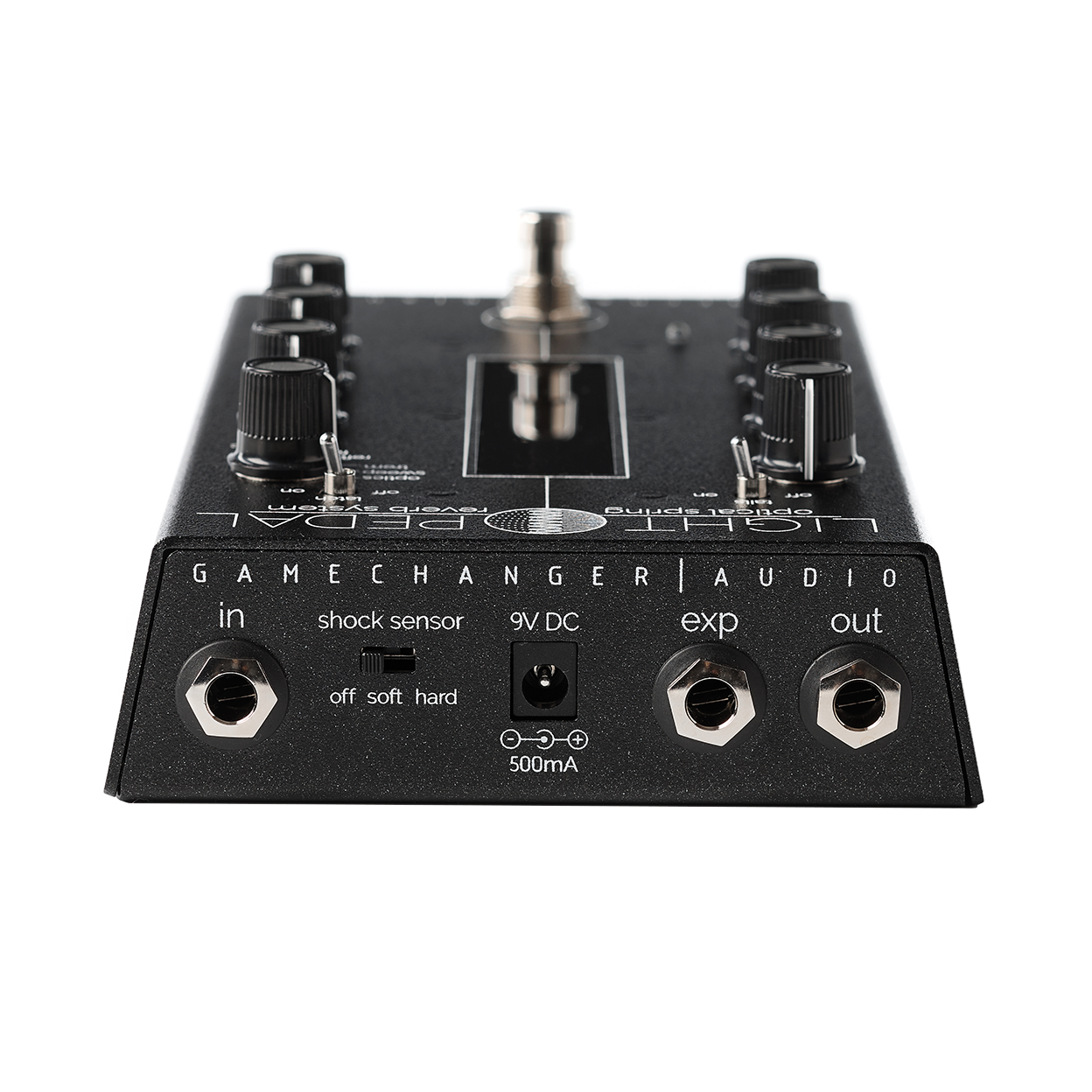

But the picture on the back of the pedal shows this:



Which looks to me like centre - positive, unless I've misunderstood something. All my other pedals don't have anything on them to indicate a required polarity.

The two pedal power supplies I own both show plus - centre - negative on them.

[Folderol]

Nope. It's exactly correct. Centre negative (as usual).

[Will_m]

Nope. It's exactly correct. Centre negative (as usual).

Ah ok maybe I'm misunderstanding then. Going off this page about polarity, the images on the right seem to say that the symbol on the light pedal is centre positive.

https://en.wikipedia.org/wiki/Polarity_symbols

[resistorman]

Well, the diagram shows the center negative . Momentary dyslexia attack?

[resistorman]

Nope. It's exactly correct. Centre negative (as usual).

Ah ok maybe I'm misunderstanding then. Going off this page about polarity, the images on the right seem to say that the symbol on the light pedal is centre positive.

https://en.wikipedia.org/wiki/Polarity_symbols

Actually, they show the same thing as the pedal. Just on the other side. The little dot in the middle represents the center terminal.

[Will_m]

Ok, I think I've been reading it entirely wrong. So its whether the positive or negative connects to the centre dot and not the order of the symbols?

So the symbol on the image of the light pedal is centre negative but just happens to show a different left to right order to the one on the wikipedia page?

[Folderol]

Exactly. However the wikipedia wording is vary bad and suggests the orientation is significant - it isn't. The only thing that matters is which symbol goes to the centre dot.

[Will_m]

Exactly. However the wikipedia wording is vary bad and suggests the orientation is significant - it isn't. The only thing that matters is which symbol goes to the centre dot.

Ah good to know, it definitely threw me a bit. Thanks for the help guys.

[Dynamic Mike]

If you're looking for replacements or spares try myvolts.co.uk
Just tell them what it's for & they'll source it or manufacture it as appropriate. I got a replacement for the scrawny undersized one supplied by Line6. Quality stuff but they're not what you'd call quick. They can also add an inline switch which is great if the socket is under the desk or behind the sofa.

[Will_m]

If you're looking for replacements or spares try myvolts.co.uk
Just tell them what it's for & they'll source it or manufacture it as appropriate. I got a replacement for the scrawny undersized one supplied by Line6. Quality stuff but they're not what you'd call quick. They can also add an inline switch which is great if the socket is under the desk or behind the sofa.

Thanks! looks like a useful site.
